| FEATURES/ BENEFITS | |

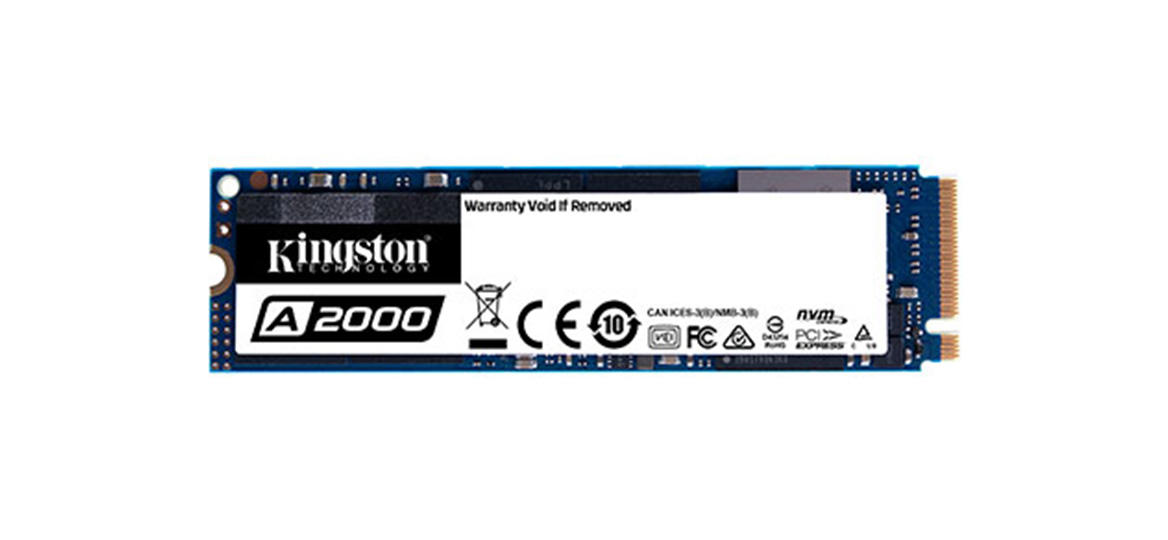

| NVMe PCIe performance at a fraction of the cost | A2000 is an affordable solution with impressive read/write speeds up to 2,200/2,000MB/s1 |
| Full-security suite | Protect and secure your data with Kingston’s self-encrypting drive. |
| Optimal systems | Ideal for Ultrabooks and small form factor PC (SFF PC) systems. |
| Multiple capacities | Upgrade your PC with up to 1TB2. |
| SPECIFICATIONS | |
| Form factor | M.2 2280 |
| Interface | NVMe™ PCIe Gen 3.0 x 4 lanes |
| Capacities | 250GB, 500GB, 1TB |
| NAND | 3D TLC |
| Encrypted | XTS-AES 256-bit encryption |
| Sequential read/write | 250GB – up to 2,000/1,100MB/s 500GB – up to 2,200/2,000MB/s 1TB – up to 2,200/2,000MB/s |
| Random 4K read/write | 250GB – up to 150,000/180,000 IOPS 500GB – up to 180,000/200,000 IOPS 1TB – up to 250,000/220,000 IOPS |
| Total Bytes Written (TBW) | 250GB – 150TBW 500GB – 350TBW 1TB – 600TBW |
| Power consumption | .0032W idle / .08W avg / 1.7W (MAX) read / 4.5W (MAX) write |
| Storage temperature | -40°C~85°C |
| Operating temperature | 0°C~70°C |
| Dimensions | 80mm x 22mm x 3.5mm |
| Weight | 250GB – 6.6g 500GB – 6.8g 1TB – 6.6g |
| Vibration operating | 2.17G peak (7-800Hz) |
| Vibration non-operating | 20G peak (20-1000Hz) |
| MTBF | 2,000,000 |
