CPU | 1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* 2. L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
Chipset | Intel® H610 Express Chipset |
Memory | 1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) |
Audio | 1. Realtek® Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Storage Interface | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
USB | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 2 x system fan headers 5. 1 x M.2 Socket 3 connector 6. 4 x SATA 6Gb/s connectors 7. 1 x RGB LED strip header 8. 1 x front panel header 9. 1 x front panel audio header 10. 1 x USB 3.2 Gen 1 header 11. 2 x USB 2.0/1.1 headers 12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 13. 1 x serial port header 14. 1 x Clear CMOS jumper |

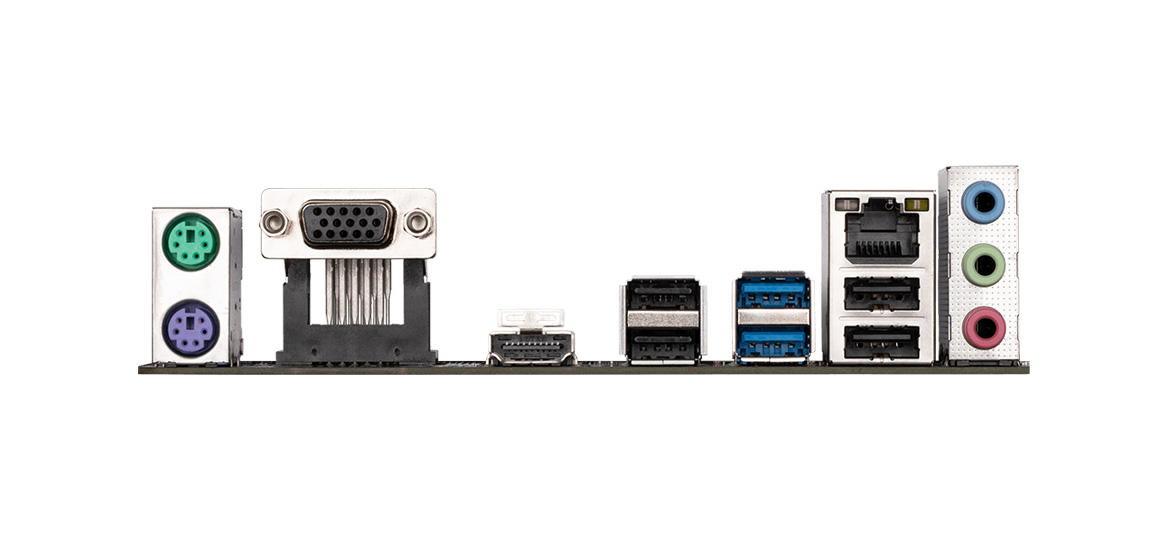

Back Panel Connectors | 1. 1 x PS/2 keyboard port 2. 1 x PS/2 mouse port 3. 1 x D-Sub port 4. 1 x HDMI port 5. 2 x USB 3.2 Gen 1 ports 6. 4 x USB 2.0/1.1 ports 7. 1 x RJ-45 port 8. 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Water cooling flow rate detection 5. Fan fail warning 6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS | 1. 1 x 128 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | 1. Support for APP Center * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer 2. Support for Q-Flash 3. Support for Xpress Install |
Bundled Software | 1. Norton® Internet Security (OEM version) 2. LAN bandwidth management software |
Operating System | 1. Support for Windows 11 64-bit 2. Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
